Appareils magnetiques rondes

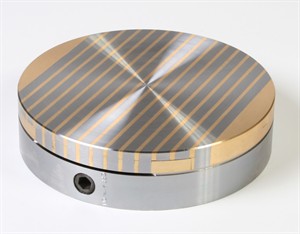

We are offering circular permanent chucks Ferromax and Neogrip with pole pitch 11 to 17mm, waterproof execution, produced from 100 to 800mm. These models are suitable for clamping of small to medium components. Model Neomicro which is produced from 100 to 300mm with pole pitch 2mm is recommended for clapming of very small pieces.

Electromagnetic chucks

Proexportplus offer electromagnetic chucks made by Walmag company. The magnetic field in these clamping units is generated with coils supplied with direct current. Electromagnets are activated with a control unit which allows quick magnetizing and an especially easy demagnetizing of the workpiece.

Electropermanent chuck

Proexportplus offer electropermanent systems made by Walmag company, which are the combination of permanent and electromagnetic technology. They exploit the ability of some ferromagnetic materials to become a permanent magnet due to the fast action of strong direct current. In this state, they continue to function without the need of an external power supply. When demagnetizing, impulses create an alternating current which demagnetizes the ferromagnetic materials.

Permanent chuck

Proexportplus offer permanent chucks made by Walmag company. In permanent magnetic chucks, we find the utilization of highly magnetized materials which in a particular arrangement facilitate the clamping of magnetic steel. Under normal conditions, they do not lose their magnetic force. Activation and deactivation is performed mechanically by movement of the internal system with permanent magnets. This is usually activated manually by use of a handle.
